Profiler

Overview

The Profiler is a tool for checking the load of effects being played in Effekseer. It visualizes total CPU and GPU load for the system, as well as playback counts and GPU load for each effect.

Overview

How to use

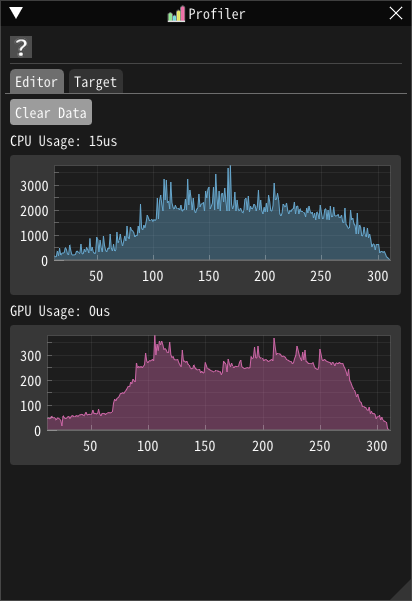

Editor tab

Displays CPU and GPU load for effects running in the Editor in real time as line graphs.

  • Press the Clear Data button to clear the recorded data.

Target tab

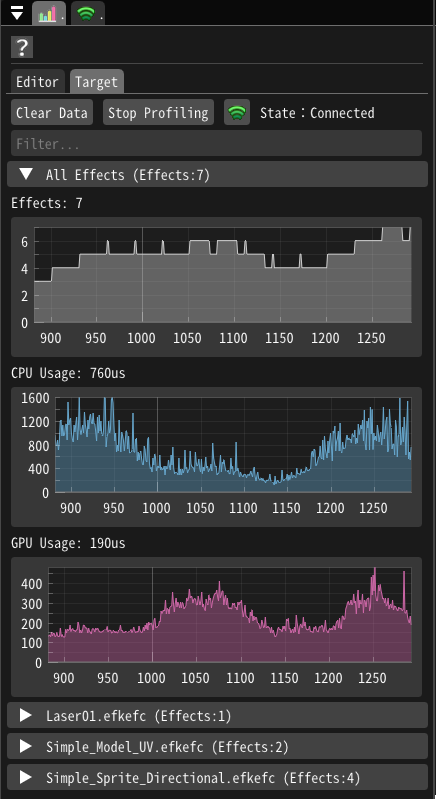

Target Profiler

Displays CPU and GPU load for effects running in games or applications, as well as playback counts and GPU load for each effect, in real time as line graphs.

Use this function as follows:

  1. Configure the Network panel and connect to the target.

  2. Return to the Profiler panel and confirm that the status is Connected.

  3. Press the Start Profile button.
